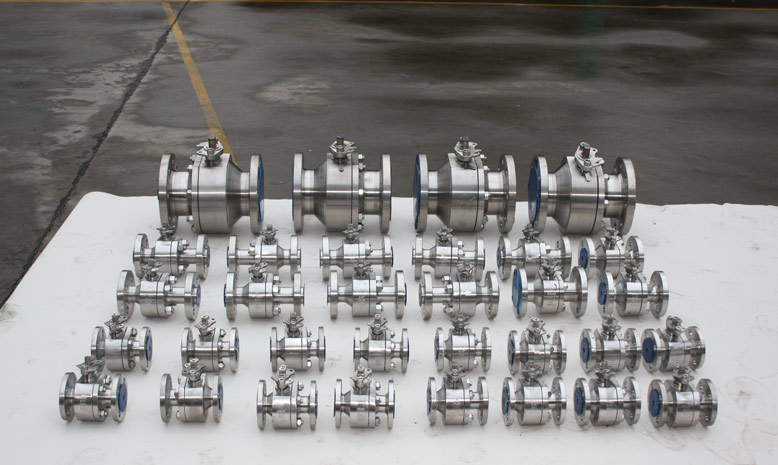

Weidouli Tantalum Ball Valves bear excellent chemical properties and high corrosion resistance, being widely used in Coal chemical industry, Petrochemical industry, Rubber industry, etc.
Floating type or Trunnion type
Full bore or Reduced bore
Side entry
Split body construction(2-PC or 3-PC)
Blow-out proof stem
Anti-static device
Fire safe design or Non-fire safe design
Soft seated or metal seated
Ends: Flanged, Wafer, Thread, BW, SW
Offer different types of industrial valve operated by: Lever, Gear, Electric actuator, Pneumatic actuator, Bare shaft
Design fully complies with ASME B16.34 or API 6D
Tested and inspected in accordance with API 598 or API 6D
Size/pressure produce range as below table
Structure | CLASS | PN | SIZE RANGE (Inch) | DN (mm) |
Floating Design | Class150 | PN10-PN20 | 1/2"~10" | DN15-DN250 |
Class300 | PN25-PN50 | 1/2"~8" | DN15-DN200 | |
Class600 | PN63-PN100 | 1/2"~6" | DN15-DN150 | |
Class 800 | / | 1/2"~4" | DN15-DN100 | |
Class900 | PN160 | 1/2"~3" | DN15-DN80 | |
Class1500 | PN250 | 1/2"~2" | DN15-DN50 | |
Trunnion Design | Class150 | PN10-PN20 | 6"~40" | DN150~DN1000 |
Class300 | PN25~PN50 | 4"~40" | DN100~DN1000 | |
Class600 | PN63-PN100 | 4"~40" | DN100~DN1000 | |
Class900 | PN160 | 4"~24" | DN100~DN600 | |
Class1500 | PN250 | 4"~24" | DN100~DN600 |
This hand ball valve can be used in coal chemical industry
The hand operated valve can be used in petrochemical industry
Rubber & paper making & pharmacy
